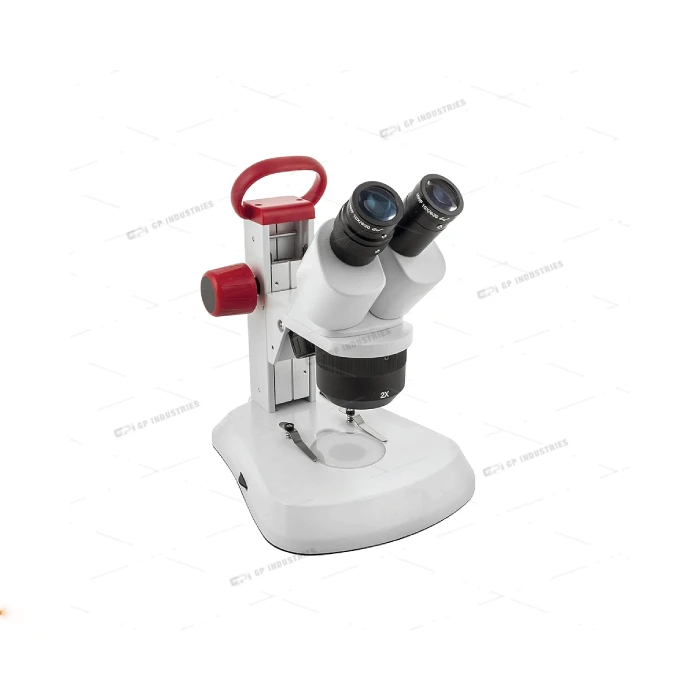

This column-mounted binocular stereo microscope offers two magnification powers: 20X and 40X. It comes with a versatile illumination system that provides both incident (top) and transmitted (bottom) illumination. You can choose between incident illumination shining on the object or transmitted illumination through the matte stage plate. The former is used for observing three-dimensional objects, and the latter for viewing slides. This microscope offers high resolution and good depth of field within a wide field of view. It provides clear, sharp stereoscopic images. Its 45-degree inclined binocular head ensures easy observation.

Eyepieces

• Pair of secured WF10x/20 widefield eyepieces with eyecups.
Head
• 45° inclined binocular tubes with diopter adjustment on the left tube, adjustable interpupillary distance between 55 and 75 mm.
Objective
• 2x and 4x objectives mounted on a rotating arm.

Mount

• Geared metal mount with stoving-hardened white lacquer.
Two coarse adjustment knobs. With transparent and black/white object plates. With two object clips.

Illumination

• Transmitted and incident LED illumination that can be used simultaneously.
