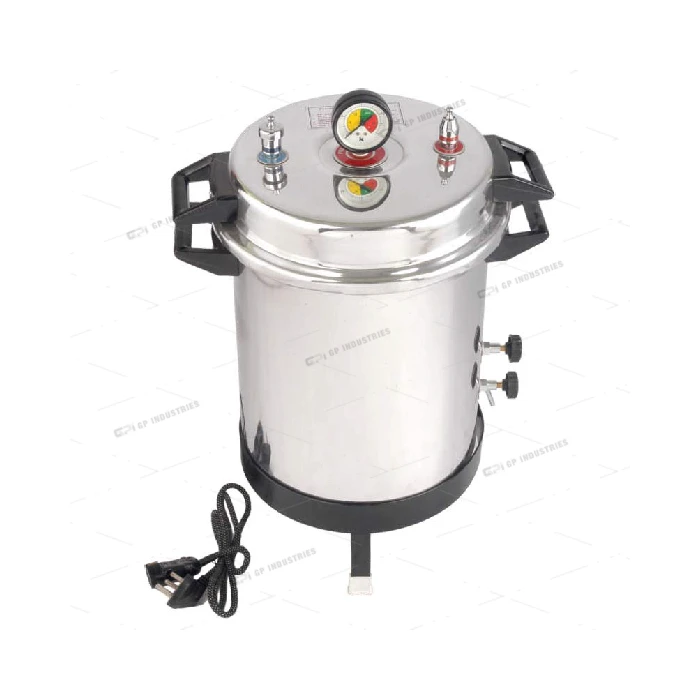

Made of entire aluminium of die pressdrum of heavy gauge to withstand hydraulic pressure 40-50 per square inch. The drum having six flynut knobs along with neoprene rubber gasket to avoid leakage of pressure. The lid is fitted with pressure gauge, safety valve and steam releasing cock. An extra safety valve is also provided.
The autoclave is fitted with immersion heating element for electrical operation. The autoclave supplied with tripod stand, handle plug and cord and also inner basket. Capacity: 13 Litres approx.
Release pressure: 70knm² (10 psig), 100knm² (15 psig) internal temperature 116° C ( in total absence of air), 121°C (in total absence of air).
Internal dimensions (Boiler) : 280mm dia x 255mm deep.
