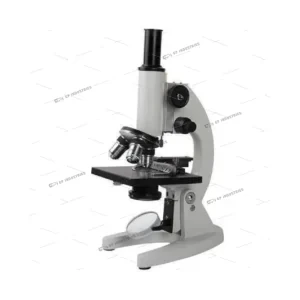

These microscopes are the digital version of the popular RED LINE series.

Eyepiece: WF 10x widefield eyepiece. Monocular models have an eyepiece with a built-in pointer. Binocular models come with a diopter adjustment for an eyepiece holder.

Observation Tube: Monocular or Binocular Siedentopf-type head, rotatable 360°. Tube length: 160 mm.

Bridge: Inverted bridge for 4 objectives. Ball-bearing mechanism and click-stop.

Objectives: Color-coded achromatic DIN objectives. 40x and 100x oil-filled objectives are spring-mounted.

Protection: Built-in protection for the specimen and objective.

Stage: 120x120mm flat stage or 130x130mm stage with a double-layer mechanical X-Y stage.The mechanical X-Y stage travels 70x28mm.

Focus Control: Coaxial coarse and fine adjustment knobs on both sides with 0.002 mm graduations. The focus control friction is adjustable.

Condenser: Height-adjustable 1.25 N.A. Abbe condenser with iris diaphragm and filter holder.

Illumination: 1-watt LED illumination with internal power supply (85-230V).

Packaging: Complete with a spare fuse and dust cover in a polystyrene case.

Standard Camera Options: 1.3 MP.

Software: Software is supplied in English or Spanish. The microscope connects via USB.
